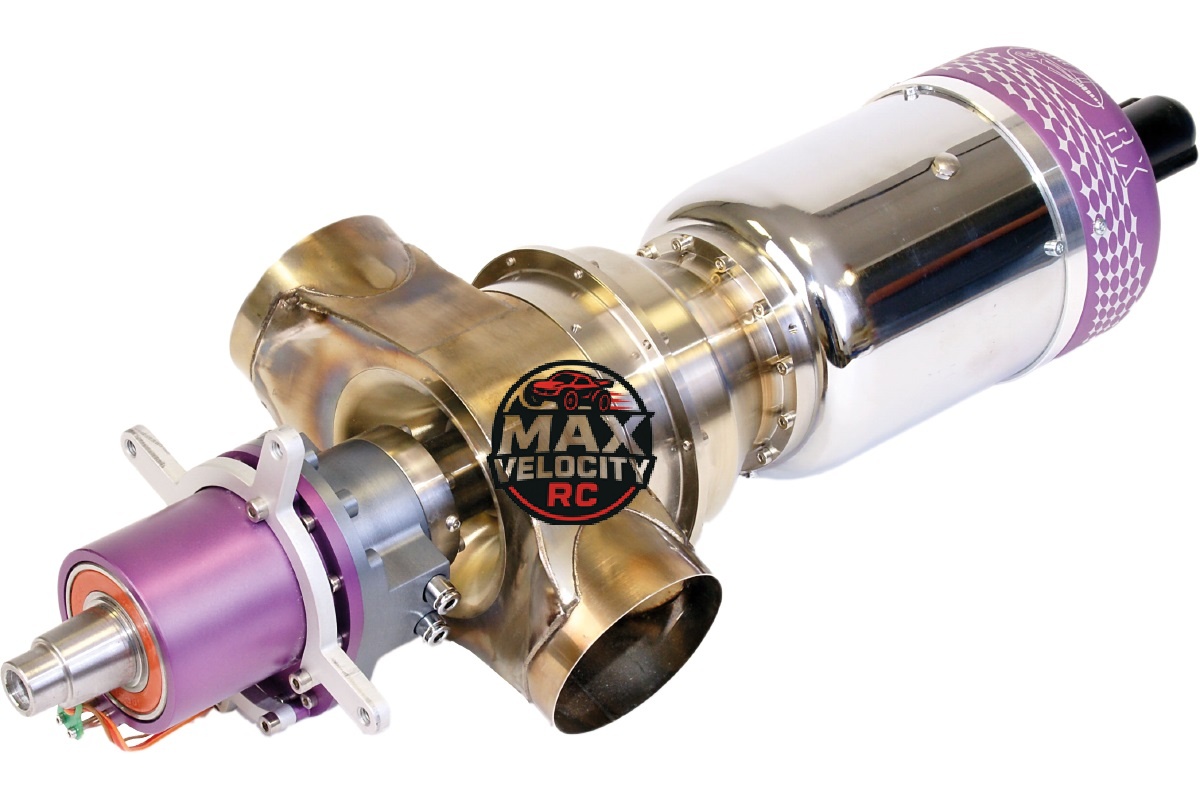

JetCat SPT-H

Are deployed in the helicopter area. An ECU software specially developed for this application allows the free programming of up to three main rotor speeds, which can then be switched on the transmitter side by means of a 3-step switch. The electronic control of both shafts ensures that the rotor speed is kept constant even during load changes.

Specifications:

Pressure ratio : 3,5
Mass flow (kg/s) : 0,37
Consumption Full load (ml/min) : 350
Consumption idle (ml/min) : 100
Weight [g] : 5180
Dimensions of the diameter (mm) : 112
Length (mm) : 520 x 170
Exhaust gas temperature (°C) : 480-730
Idling speed 1st shaft (rpm) : 33000
full load speed 1st shaft : 125000
Maximum speed 1st shaft : 12500
Gear ratio 2nd shaft : 4,0 o. 10,24
Idling speed 2nd shaft : depends on helicopter mechanics
Propeller full throttle 2nd shaft : 7000
maximum speed main rotor shaft
Torque, max. [Ncm] : 1228
