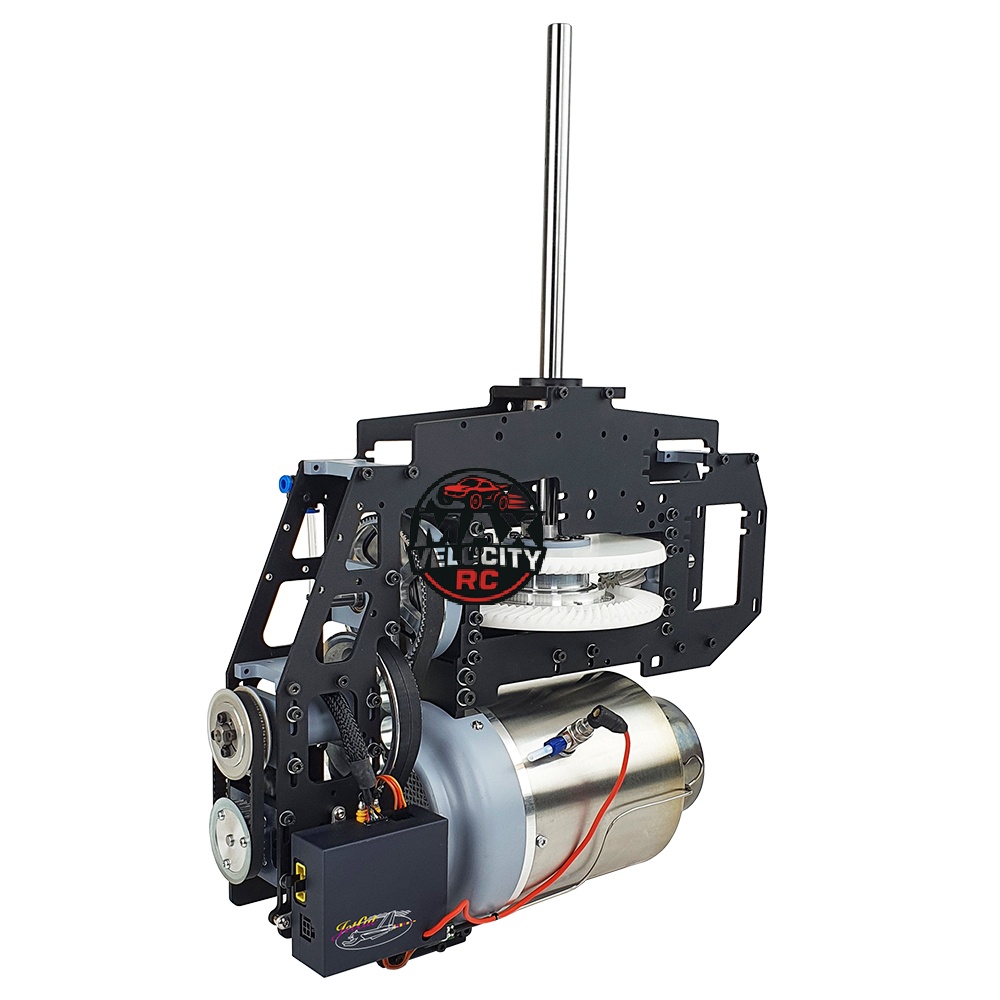

PHT3 V2 Highlights

* Direct coupled brushless starter/generator and intelligent charge control for the turbine battery
* Control electronics ECU V12 with integrated telemetry adapter
* External brushless fuel pump with connections for two solenoid valves and optional accessories (e.g. JetCat BMS, Battery Management System)
* External JetCat kerosene starting system
* Double toothed belt in the 1st gear stage
* Double crown wheel
* 12mm main rotor shaft continuous
* Main rotor speed 1161 rpm as standard (other transmission ratios possible)
* Tail rotor speed 6246 rpm
* 8mm rear output shaft with surface and centering area
* Turbine housing made of stainless steel
* Flow-optimized feed hopper
* Integrated mounting thread (2x M3) for exhaust pipe
* 2 servo mounting plates with 8 spacer bolts

Specifications:

Idle speed (1/min) : 33000
Max rpm (1/min) : 98000
Full load speed : 94000 (standard) Rotor: 1283 1/min.
Rotor idling speed (1/min) : 0 (Centrifugal clutch separated)
Full load speed rotor : 850- 1337
Maximum speed rotor : 850- 1337
Torque, max. [Ncm] : 3500- 7500
